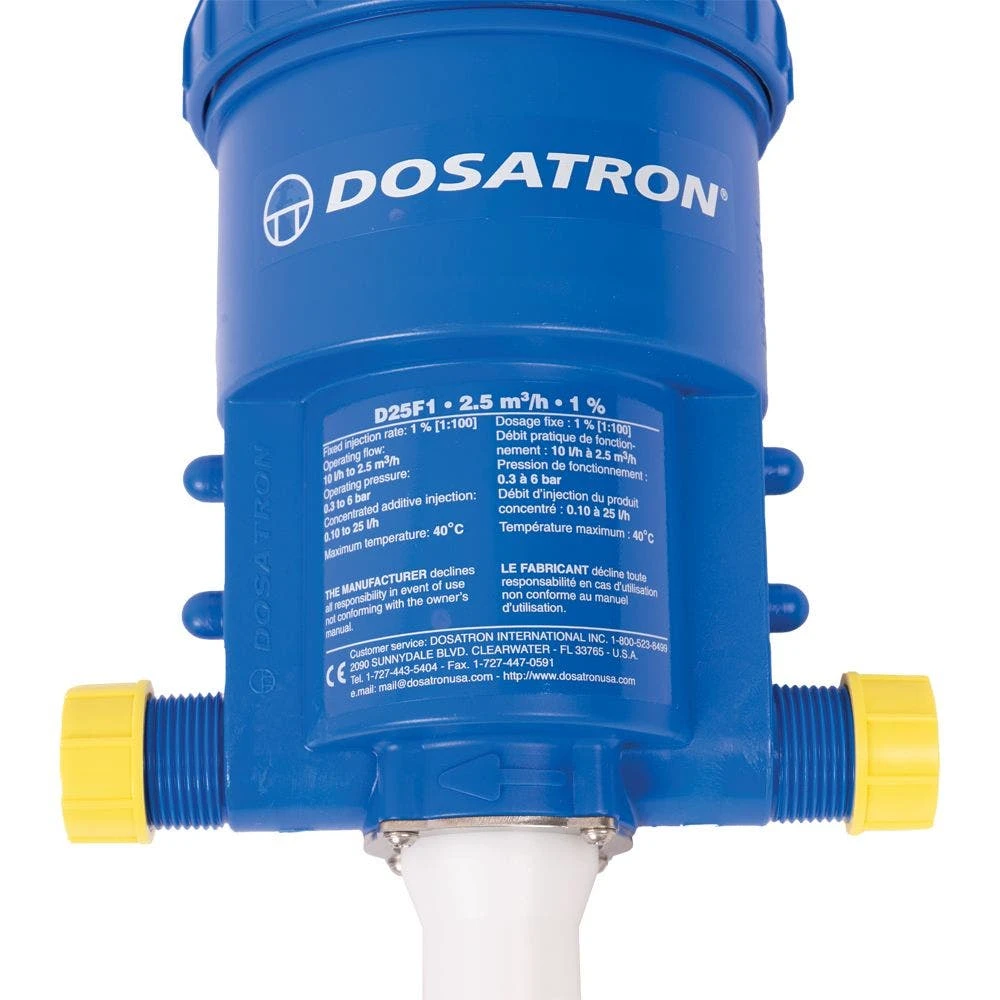

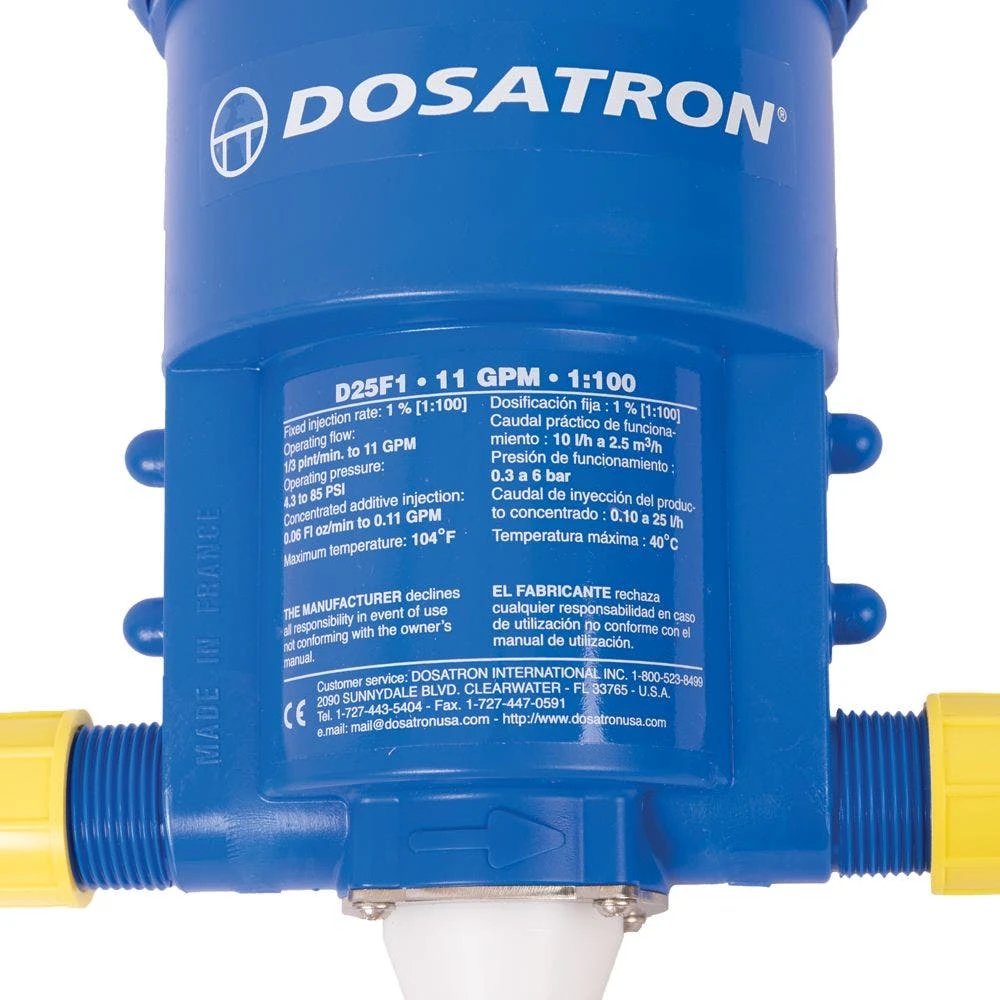

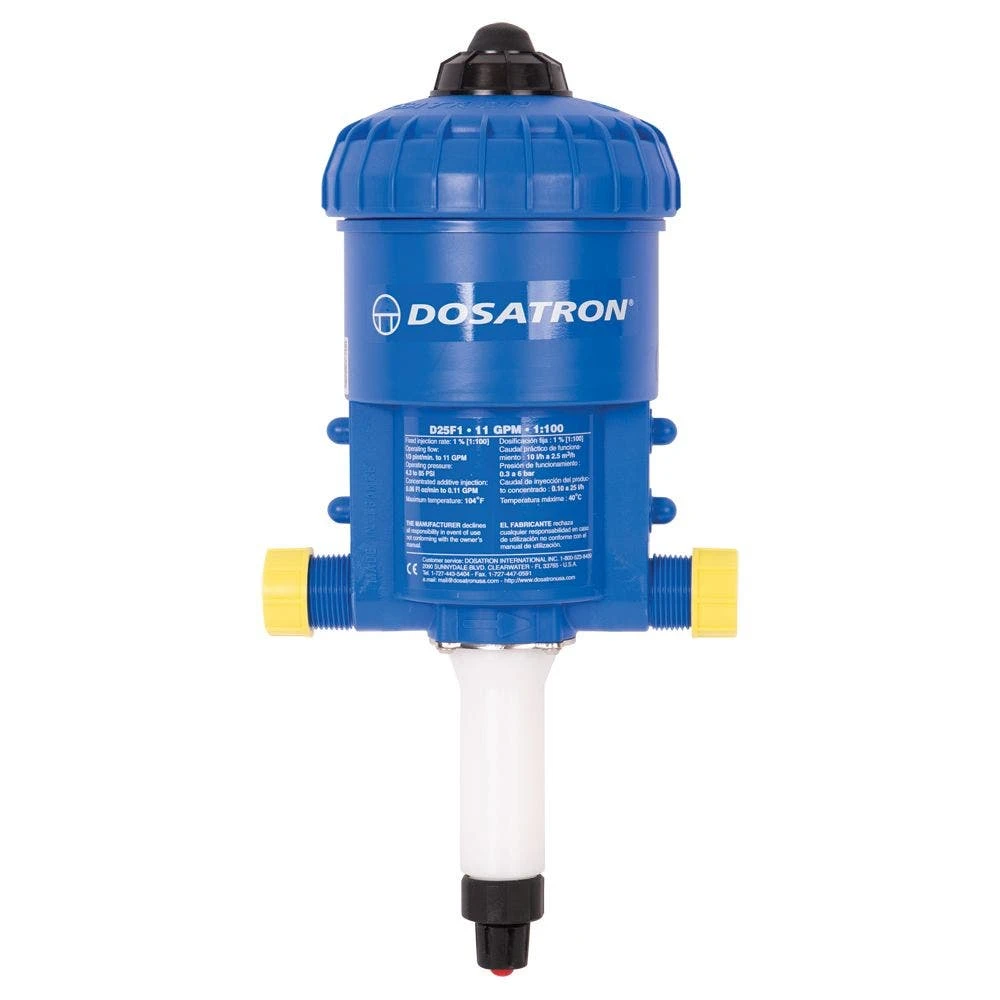

Injector, 11-GPM By Dosatron

Product Specs

• Max flow: 11 GPM
• Min flow: .5 GPM
• Injection percentage: 1%
• Injection ratio: Fixed at 1:100
• Suggested Filter: 200mesh on inlet side
• Pressure Range: 4.3 to 85 PSI
• Connections – 3/4-inch NPT

Product Warranty Information

Product Features

• The Dosatron 11 GPM Injector provides easy and accurate solution injections.
• It works like a large, water-powered syringe, ensuring an accurate mix rate.
• It can be used for injecting fertilizers, plant growth regulators, herbicides, insecticides, fungicides, algicides, acids, wetting agents, sanitizers, nematodes, and chlorine.
• It can be connected to any garden hose and also attaches to the Dosacart 15-gallon or Li’l Bud D 5-gallon cart.
• The Dosatron 11 GPM Injector provides the same accuracy no matter what the flow and water pressure.

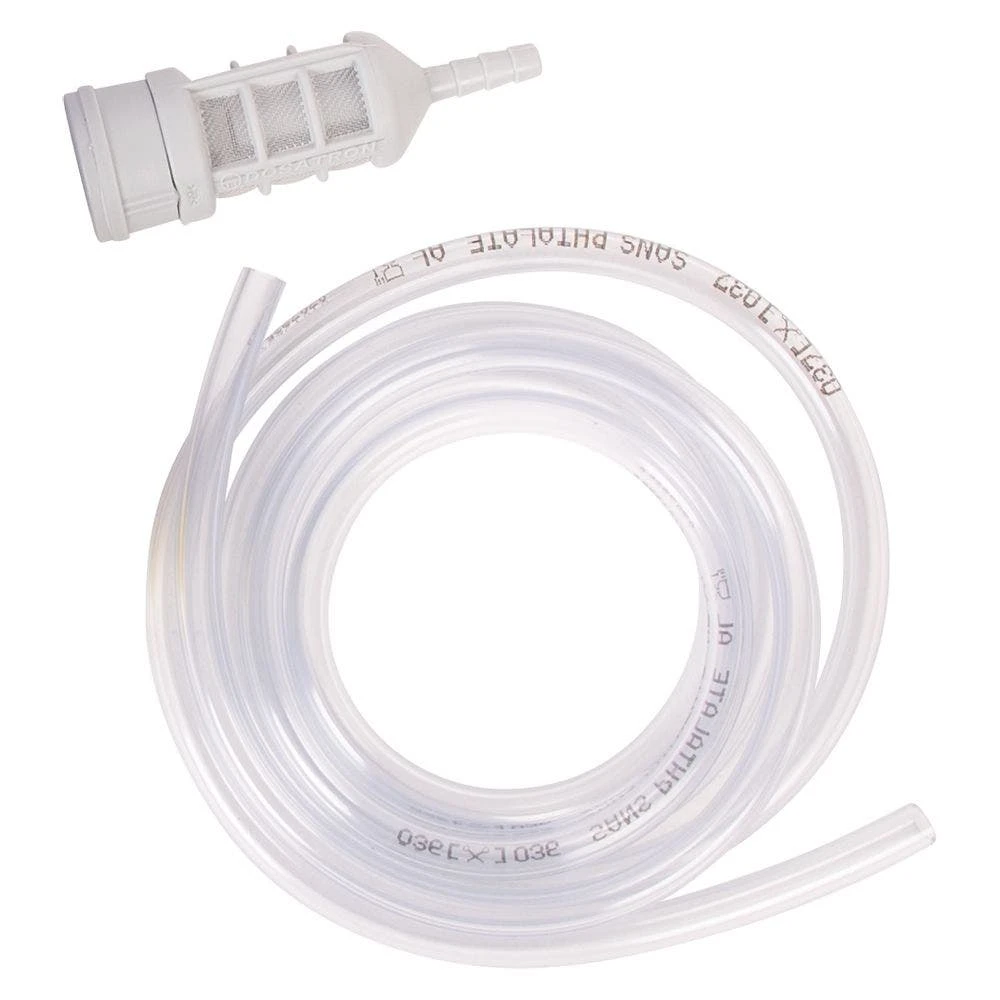

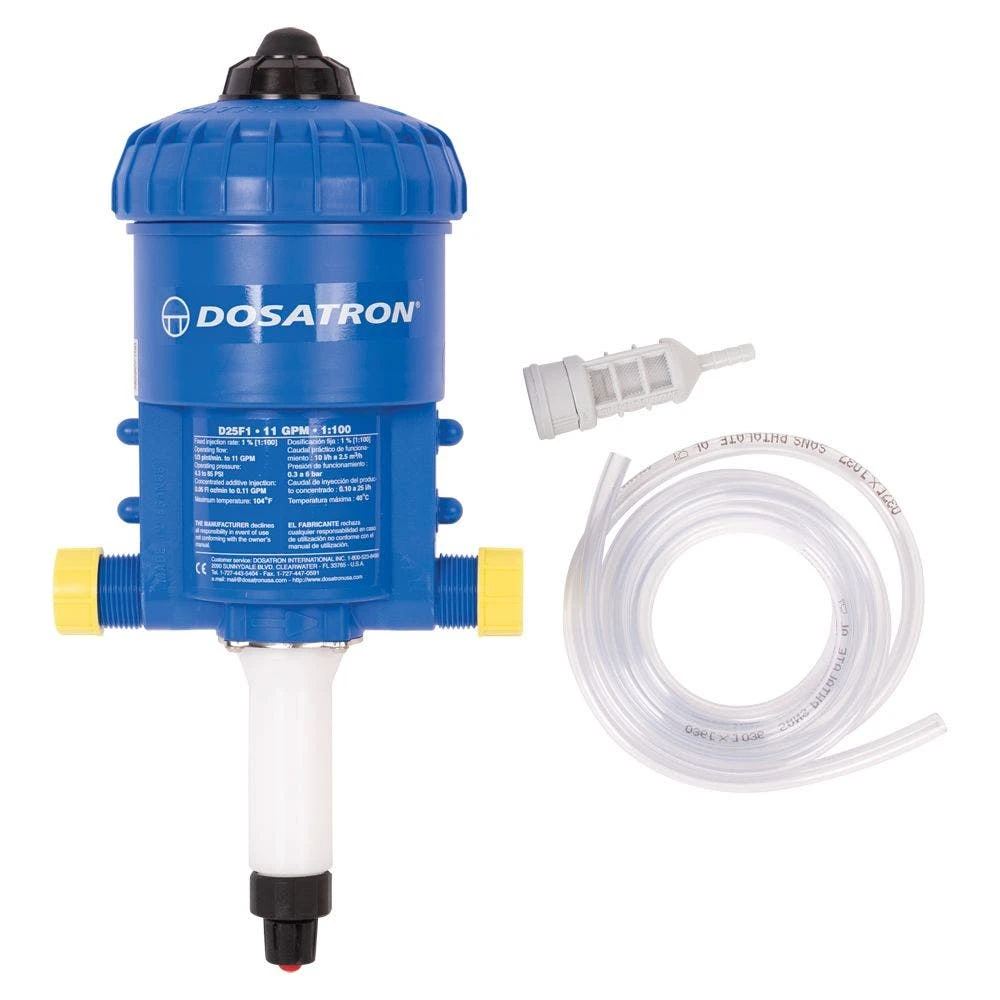

• It includes a mounting bracket, suction hose, weighted strainer, and operator’s manual.
• The Dosatron 11 GPM Injector has a max flow of 11 GPM, min flow of 0.5 GPM, injection percentage of 1%, injection ratio fixed at 1:100, and pressure range of 4.3 to 85 PSI.

Product Shipping Weight

• 13 pounds

Frequently Asked Questions

What is the Dosatron 11 GPM Injector?
The Dosatron 11 GPM Injector is a water-powered syringe that mixes the concentrate with water and ensures an accurate mix rate when injecting fertilizers, plant growth regulators, herbicides, among others.

How does the Dosatron Injector work?
The Dosatron Injector works by pulling the concentrate from its container through a suction hose during the upstroke; on the down stroke, the solution moves into the injector’s body and mixes with water, then discharges into the water line.

What are the Dosatron Injector’s features?
The Dosatron Injector has a maximum flow of 11 GPM, an injection ratio fixed at 1:100, minimum flow of .5 GPM, and can connect to any garden hose. It is also compatible with the Dosacart 15-gallon cart and Li’l Bud D 5-gallon cart.

What are the Dosatron Injector’s applications?
The Dosatron Injector can be used for injecting fertilizers, plant growth regulators, herbicides, insecticides, fungicides, algicides, acids, wetting agents, sanitizers, nematodes, chlorine, among others, into the garden soil.
